[ Flutter ] Navigation 사용하여 화면이동

안녕하세요 이번 글에서는 Navigation을 이용하여 보겠습니다.

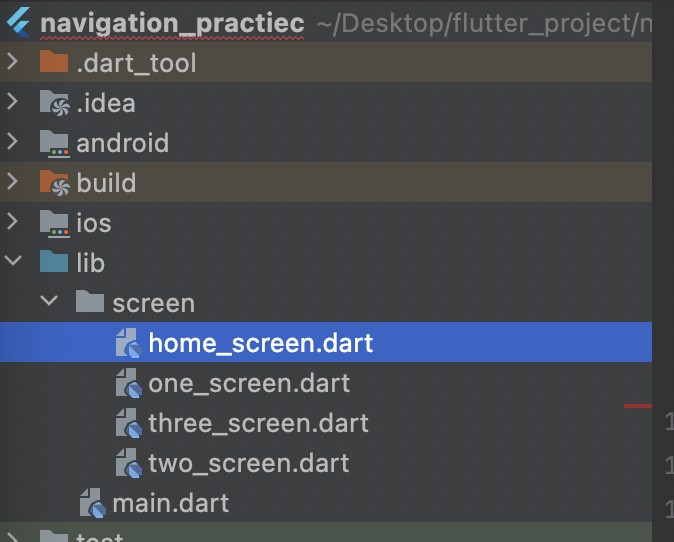

프로젝트의 디렉터리와 파일을 다음과 같이 생성







main.dart



import 'package:flutter/material.dart';
import 'package:navigation_practiec/screen/home_screen.dart';
import 'package:navigation_practiec/screen/one_screen.dart';
import 'package:navigation_practiec/screen/three_screen.dart';
import 'package:navigation_practiec/screen/two_screen.dart';

void main() {
  runApp(MaterialApp(

    initialRoute: '/', // 처음 시작 screen 설정

    routes: {
      // 앞에 선언한 스트링에 맞게 context 를 해당 위젯으로 반환
      '/':(context) => HomeScreen(),
      '/one':(context) => OneScreen(),
      '/two':(context) => TwoScreen(),
      '/three':(context) => ThreeScreen(),
    },

  ));
}





one_screen.dart

import 'package:flutter/material.dart';

class OneScreen extends StatelessWidget {
  const OneScreen({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text('OneScreen'),
      ),
      body: Padding(
        padding: const EdgeInsets.symmetric(horizontal: 5.0),
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          crossAxisAlignment: CrossAxisAlignment.stretch,
          children: [
            ElevatedButton(
              onPressed: () {
                Navigator.of(context).pushNamed('/two');
              },
              child: Text('push'),
            ),
            ElevatedButton(
              onPressed: () {
                Navigator.of(context).pop();
              },
              child: Text('pop'),
            ),
            ElevatedButton(
              onPressed: () {
                Navigator.of(context).maybePop();
              },
              child: Text('maybePop'),
            ),
          ],
        ),
      ),
    );
  }
}





two_screen.dart

import 'package:flutter/material.dart';
import 'package:navigation_practiec/screen/three_screen.dart';

class TwoScreen extends StatelessWidget {
  const TwoScreen({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text('TwoScreen'),
      ),
      body: Padding(
        padding: const EdgeInsets.symmetric(horizontal: 5.0),
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          crossAxisAlignment: CrossAxisAlignment.stretch,
          children: [
            ElevatedButton(
              onPressed: () {
                // 자신의 스택을 삭제하고 다음스택으로 넘어간다 1->2(삭제)->3
                // 3에서 pop 을 할 경우 1로 돌아간다.
                Navigator.of(context).pushReplacement(
                  MaterialPageRoute(builder: (BuildContext context)
                  => ThreeScreen()
                  ),
                );
              },
              child: Text('pushReplacement'),
            ),
            ElevatedButton(
              onPressed: () {
                // Named 를 사용하여 미리 선언해둔 route 를 사용
                Navigator.of(context).pushReplacementNamed('/three');
              },
              child: Text('pushReplacementNamed'),
            ),
            ElevatedButton(
              onPressed: () {
                // pushAndRemoveUntil -> route 로 지정한 stack 을 제외하고 나머지 삭제
                // false 일 경우 다음으로 넘어가는 stack 만 남기고 전부 삭제
                Navigator.of(context).pushAndRemoveUntil(
                MaterialPageRoute(builder: (BuildContext context) => ThreeScreen())
                , (route) => route.settings.name == '/');
              },
              child: Text('pushAndRemoveUntil'),
            ),
          ],
        ),
      ),
    );
  }
}



three_screen.dart



import 'package:flutter/material.dart';

class ThreeScreen extends StatelessWidget {
  const ThreeScreen({Key? key}) : super(key: key);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        title: Text(
          'ThreeScreen',
        ),
      ),
      body: Padding(
        padding: const EdgeInsets.symmetric(horizontal: 5.0),
        child: Column(
          mainAxisAlignment: MainAxisAlignment.center,
          crossAxisAlignment: CrossAxisAlignment.stretch,
          children: [
            ElevatedButton(
              onPressed: () {
                Navigator.of(context).pop();
              },
              child: Text('Pop'),
            )
          ],
        ),
      ),
    );
  }
}
